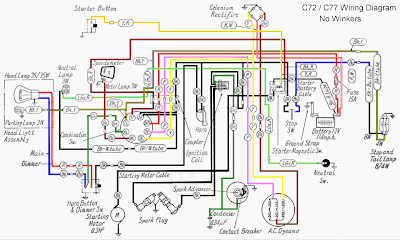

A car harness wiring diagram is a map of the wiring connections between the different components of a car’s electrical system. It shows how the wires are routed, spliced, and connected to power sources, switches, fuses, relays, sensors, lights, and other devices.
To read a car harness wiring diagram, you should follow these steps:
- Step 1: Identify the Circuit in Question. You should find the circuit that you want to troubleshoot or install a new device on. For example, if you want to check the brake lights, you should look for the circuit that controls them.
- Step 2: Find the Power Source and Ground. You should locate the battery or other power source that supplies voltage to the circuit. You should also find the ground connection that completes the circuit. The power source and ground may be labeled with symbols or colors on the diagram.
- Step 3: Follow the Wires and Components. You should trace the wires from the power source to the ground, using the legend or key to understand what each symbol or color means. You should also identify the components that are connected to the wires, such as switches, fuses, relays, sensors, lights, and other devices. You should pay attention to how they are wired in series or parallel, and how they are activated or controlled.
- Step 4: Test the Circuit. You should use a multimeter or a test light to check for voltage, continuity, resistance, or current in the circuit. You should also check for any loose or damaged connections, corroded terminals, broken wires, or faulty components. You should repair or replace any defective parts as needed.
